CWP-Series™

Complete water purification solution in one compact, weather-resistant unit.

Product Information

UV Guard’s CWP-Series purifies water to allow it to be safely consumed or used throughout your home or commercial facility. The unit delivers complete water treatment in 3 stages – filtration, adsorption and UV disinfection – to remove sediment, bacteria and other pathogens while improving taste, clarity and odour. Suitable for rainwater, bore water and townwater treatment.

At a glance

  • The ideal solution for tank or town water treatment
  • Destroys 99.99% of pathogens making water safe for drinking
  • Improves taste, clarity & odour
  • Corrosion-resistant stainless steel bracket & lockable cover
  • Premium twin filter housings
  • Australian WaterMark-certified.

Advantages

All systems in the CWP-Series are compact, weather-resistant and easy to use and maintain. By naturally disinfecting water without the use of harsh chemicals, it offers a safer and more sustainable solution for drinking water treatment. Over the life of the system, its simplicity also brings real time and cost savings for both residential and commercial users.

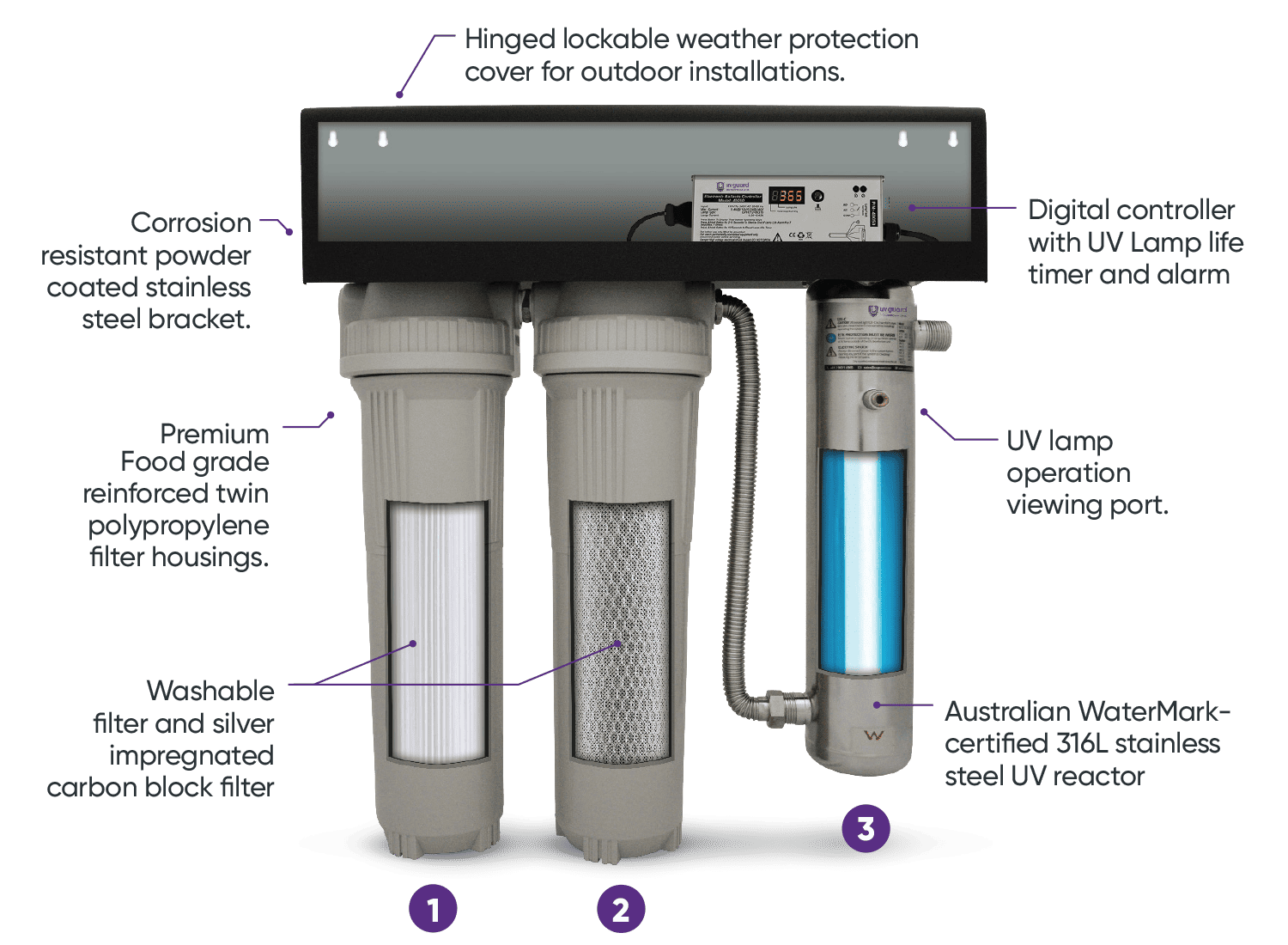

Key Features

  • Australian WaterMark-certified
  • Destroys 99.99% of pathogens including E. Coli, Cryptosporidium and Giardia making it safe for drinking
  • Removes sediment and improves taste, colour and odour of rainwater, bore water and town water
  • Corrosion-resistant stainless-steel bracket and lockable cover
  • Premium twin filter housings with pleated washable filter and silver impregnated carbon block filter
  • 316L stainless steel UV reactor with lamp operation view port and digital controller
  • Pre-assembled for quick ‘plug & play’ installation.

3-Stage – Filtration, Adsorption & UV disinfection

Using globally proven UV technology, the CWP-Series features a highly effective 3-Stage Drinking Water Treatment System:

Stage 1 – Sediment Filtration: Removes common water impurities such as silt, dirt and rust.
Stage 2 – Adsorption: Silver-impregnated antibacterial carbon block filter improves taste, odour and clarity whilst preventing bacteria from establishing.
Stage 3 – UV Disinfection: Chemical-free process that destroys bacteria and other harmful pathogens in the water. No pathogen is known to be immune to UV Disinfection.

Models & Specifications

Model Dimensions UV Dose Flow Rates
A B C 16mJ/cm2 30mJ/cm2 40mJ/cm2
CWP30 60 66 22 78 lpm 42 lpm 31 lpm
CWP55 60 74 22 142 lpm 77 lpm 56 lpm
Model Inlet Outlet Sediment Filter Adsorption Filter UV Lamp Maximum Pressure
CWP30 1” Female BSP (25mm) 1” Male BSP (25mm) 20 micron pleated washable 5 micron silver antibacterial carbon 30W 875 kPa
CWP55 55W

UV Guard Applications

Our market-leading UV disinfection systems deliver outstanding results across an extensive range of industrial, commercial and domestic applications.

Drinking Water

Rainwater
