Armour Range
Versatile UV water disinfection for moderate-flow Industrial and Commercial applications.
Product Information

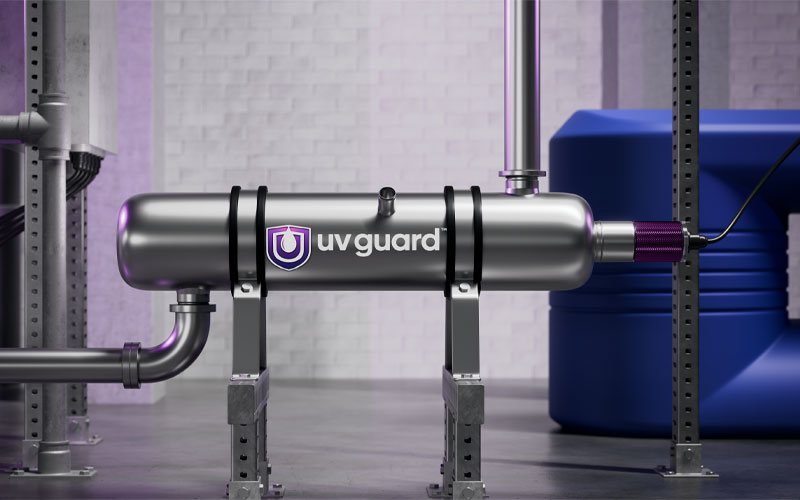

UV Guard’s Armour Range is the most compact UV water disinfection system in its class. Suitable for high pressure installations, it offers a robust solution for industrial and commercial applications.
- Multiple models to suit a range of commercial UV disinfection applications.
- Australian WaterMark certified (level 1)
- Durable 316L glass-bead blasted and electro-polished steel UV reactor.
- Multiple inlet & outlet options.
- Internal flow mixer optimises UV exposure.
- Wide range of optional controller features.
Advantages
- Certified to Australian WaterMark (Level 1).
- Improved UV reactor finish glass-bead blasted then electro-polished.
- Perfect for higher pressure installations up to 16 bar.
- Multiple inlet and outlet options to suit any application – BSP, sanitary or flanged in L or Z shape configuration.
- Systems utilise latest technology low pressure UV lamps – shorter UV lamps generate more power and increased efficiency.
- Internal flow mixer – optimises UV exposure of all liquid passing through UV reactor.
- Optional controller features – you choose exactly what you need – indoor or weatherproof, UV lamp safety devices, UV intensity monitoring, supervisory controller integration and more.
- Convenient viewport and transparent lamp lead window for UV sensor integration and visual UV lamp inspection.
- UV reactor IP65 rated – minimises damage caused by harsh installation environments.
System Options
- Lamp safety interlocking device
- Manual quartz wiping systems
- Remote on/off
- Modbus module
- UVi monitoring
- SMS fault module
- Fault volt free contacts
- Reactor temperature safety system
- Polycarbonate, powder coated steel and stainless steel IP rated controller enclosures
Models
| Model | Flow Rate @ 30mJ/cm2 | Flow Rate @ 40mJ/cm2 | Inlet/Outlet |
|---|---|---|---|
| ARM1 | 0.87 m³/hr | 0.65 m³/hr | ½" BSPT |
| ARM2 | 3.02 m³/hr | 2.26 m³/hr | 1" BSPT |
| ARM3 | 5.27 m³/hr | 3.95 m³/hr | 1" BSPT |
| ARM4 | 7.22 m³/hr | 5.41 m³/hr | 1" or 1½" BSPT |
| ARM6 | 10.01 m³/hr | 7.51 m³/hr | 1½" or 2" BSPT |
| ARM7 | 12.52 m³/hr | 9.39 m³/hr | 1½" or 2" BSPT |
| ARM9 | 14.88 m³/hr | 11.16 m³/hr | 2" BSPT |
| ARM11 | 18.69 m³/hr | 14.02 m³/hr | 2" BSPT |
| ARM12 | 20.11 m³/hr | 15.08 m³/hr | 2" BSPT |
| ARM16 | 26.54 m³/hr | 19.91 m³/hr | 2" BSPT |
| ARM25 | 40.76 m³/hr | 30.57 m³/hr | 3" Table E |
