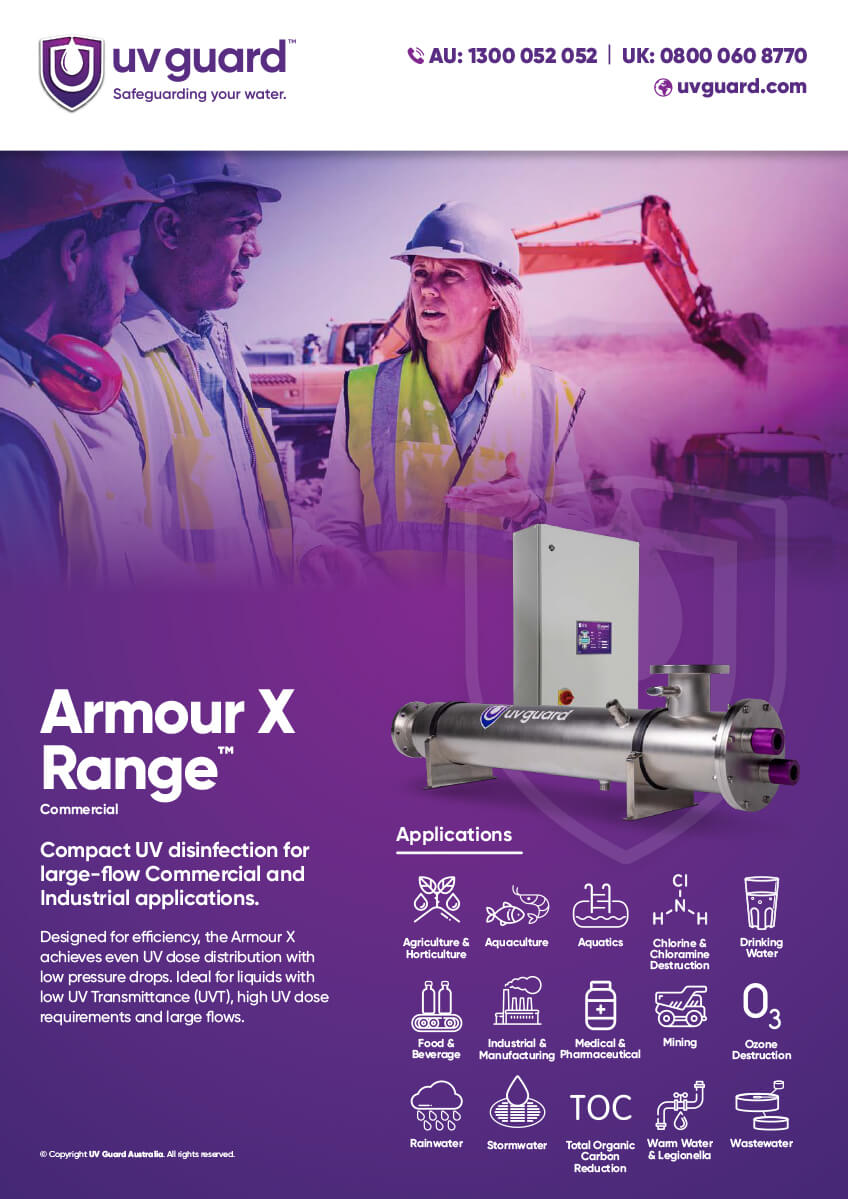

Armour X
Compact UV disinfection for large-flow Commercial and Industrial applications.
Product Information
Designed for efficiency, the Armour X achieves even UV dose distribution with low pressure drops. Ideal for liquids with low UV Transmittance (UVT), high UV dose requirements and large flows.
- Industrial UV disinfection at flows from 57 – 557 m³/hr
- Precise Computational Fluid Dynamics used to maximise efficiency and performance
- Multiple inlet & outlet connections, types and positions
- Low-pressure UV lamp systems with up to 16,000 hours of operational life
- Customisable controller made in Australia
Advantages
- Australian WaterMark-certified 316L glass-bead blasted then electro-polished steel UV reactor.
- Computational fluid dynamics used to design reactor for even UV dose distribution and low head loss.
- UV reactor IP65 rated – minimises damage caused by harsh installation environments.
- Perfect for higher pressure installations up to 16 bar.
- Australian manufactured PLC – commercial industry standard with an array of customisable options.
- UV reactor designed for higher flows with less lamp power for increased efficiency.
- Maximum flexibility with an extensive range of single and multiple lamped systems with an array of inlet and outlet connection sizes and types.
- Space optimised design allows disinfection of total flow to be achieved through a single reactor, reducing footprint requirements and plumbing infrastructure costs.
System Options
- Lamp safety interlocking device
- Manual quartz wiping systems
- Remote on/off
- Modbus module
- UVi monitoring
- SMS fault module
- Fault volt free contacts
- Polycarbonate, powder coated steel and stainless steel controller IP rated enclosures
- Reactor temperature safety system
Models
| Model | Flow Rate @ 30mJ/cm2 | Flow Rate @ 40mJ/cm2 | Inlet/Outlet |
|---|---|---|---|
| ARMX30 | 57.8 m³/hr | 43.35 m³/hr | 3" or 4" Table E |
| ARMX40 | 74.98 m³/hr | 56.23 m³/hr | 3" or 4" Table E |
| ARMX60 | 115.59 m³/hr | 86.69 m³/hr | 3" or 4" Table E |
| ARMX80 | 149.95 m³/hr | 112.47 m³/hr | 3" or 4" Table E |
| ARMX85 | 177.25 m³/hr | 132.94 m³/hr | 4" or 6" Table E |
| ARMX170 | 354.5 m³/hr | 265.87 m³/hr | 4" or 6" Table E |
| ARMX200 | 449.33 m³/hr | 337 m³/hr | 8" Table E |
| ARMX250 | 557.33 m³/hr | 418 m³/hr | 8" Table E |
